Applications :
- Vacuum components
- Electronic components where electrical insulation and heat dissipation are required
- Components where a low coefficient of thermal expansion required.
- Electronic components where low dielectric constant and dissipation factors are required.
- Heat sinks
- Crucibles for vacuum deposition
- Special refractory parts such as protective tubes
- A wide range of industrial and structural components

Combines excellent machinability, high thermal conductivity and high mechanical
strength applicable to structural and a broad range of other uses.

- Excellent Machinability
  Shapal Hi-M Soft can be machined by a broad range of methods such as drilling, turning, milling
to form complex shapes with high precision.
- Excellent sealing ability to vacuum.

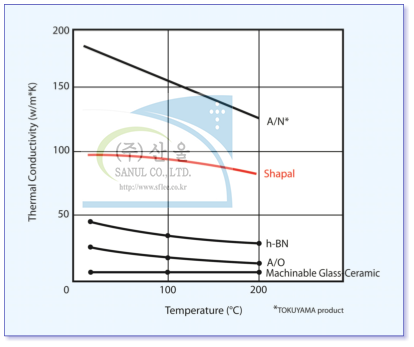

- High thermal conductivity.
  Approximately five times as much thermal conductivity as that of alumina (aluminium oxide)

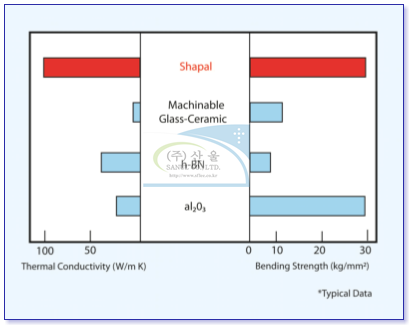

- High Mechanical Strength Bending strength of 30kg/mm² is comparable to that of alumina
- Excellent electric insulation

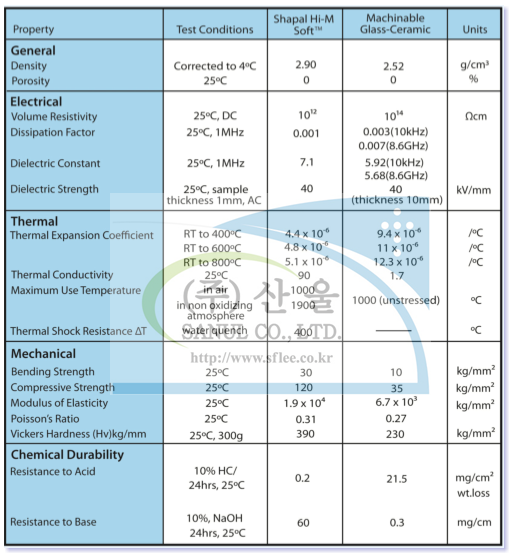

- Shapal Hi-M Soft is unique compared to other fine ceramics
   Low thermal expansion
   High ability heat resistance
   Low dielectric loss
   Ultra high purity
