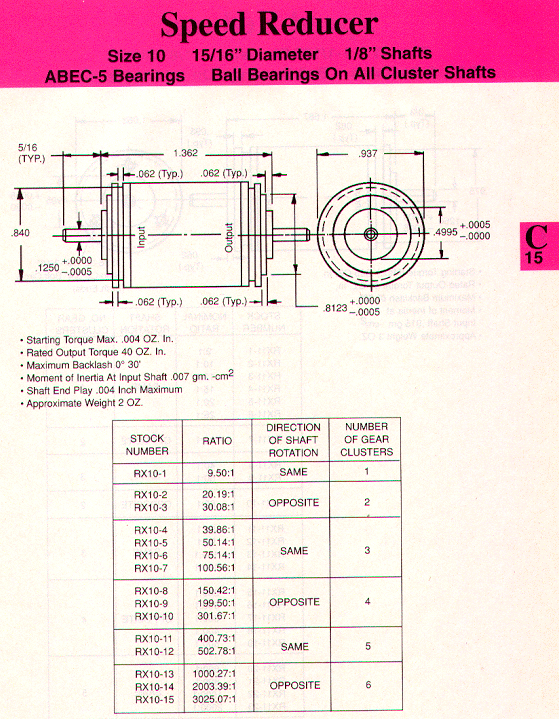

Weight approximately 2 oz. Shaft
end play of .004 " maximum Maximum backlash 0° 30' Rated output torque of 40
oz.in. Starting torque maximum of .004 oz.in. Moment of inertia at input
shaft of .007 gm.-cm². Any of our speed reducers can be used as a speed increaser as long as
the
speed and torque requirements are maintained. The allowable input speed
when
using as a reducer is 6000RPM. The other parameters are on the catalog page
